Elcometer 456 Integral
Basic / Ferrous / 0-60mils
Sale price
$800.00 USD
Regular price
$825.00 USD
Skip to product information
Elcometer 456 Integral
Sale price
$800.00 USD
Regular price
$825.00 USD
Shipping calculated at checkout.

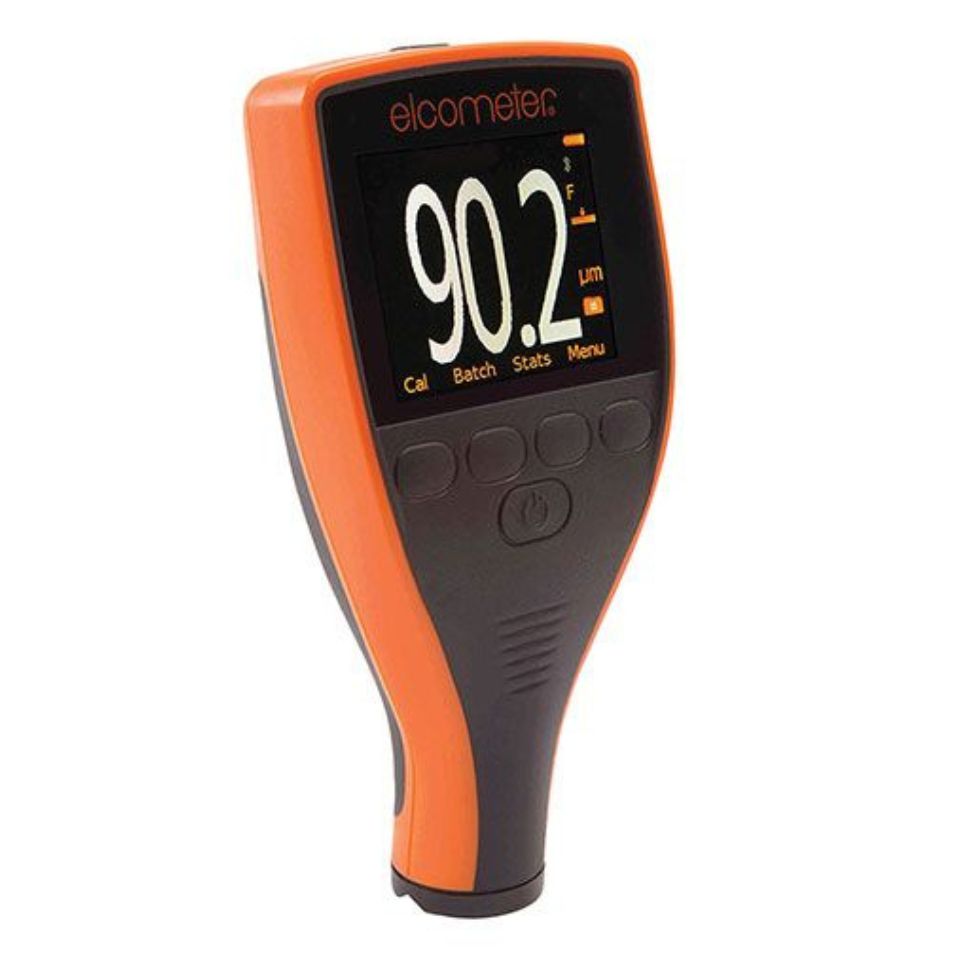

The Elcometer 456 Integral coating thickness gauge with built-in probe provides fast, accurate, and reliable thickness readings, perfect for automotive, marine, and industrial applications.
Technical Specifications

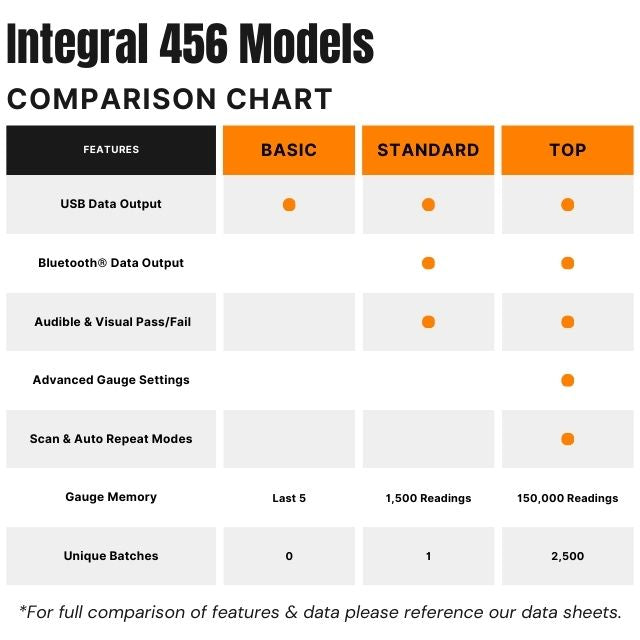

| Product Features | Basic | Standard | Top |
|---|---|---|---|
| Fast, accurate reading rate; 70+ readings per minute | ⬛ | ⬛ | ⬛ |
| Repeatable & reproducible measurements | ⬛ | ⬛ | ⬛ |
| Easy to use menu structure; in 30+ languages | ⬛ | ⬛ | ⬛ |
| Tough, impact, waterproof & dust resistant; equivalent to IP64 | ⬛ | ⬛ | ⬛ |
| Bright colour screen; with permanent backlight | ⬛ | ⬛ | ⬛ |
| Scratch & solvent resistant display; 2.4” (6cm) TFT | ⬛ | ⬛ | ⬛ |
| Large positive feedback buttons | ⬛ | ⬛ | ⬛ |
| USB power supply; via PC | ⬛ | ⬛ | ⬛ |
| Test certificate | ⬛ | ⬛ | ⬛ |
| 2 year gauge warranty1 | ⬛ | ⬛ | ⬛ |
| Automatic rotating display; 0°, 90°, 180° & 270° | ⬛ | ⬛ | ⬛ |
| Ambient light sensor; with adjustable auto brightness | ⬛ | ⬛ | ⬛ |
| Emergency Light Mode | ⬛ | ⬛ | ⬛ |
| Tap awake from sleep | ⬛ | ⬛ | ⬛ |
| Gauge software updates2; via ElcoMaster® software | ⬛ | ⬛ | ⬛ |
| Data Output | ⬛ | ⬛ | ⬛ |
| USB; to computer | ⬛ | ⬛ | ⬛ |

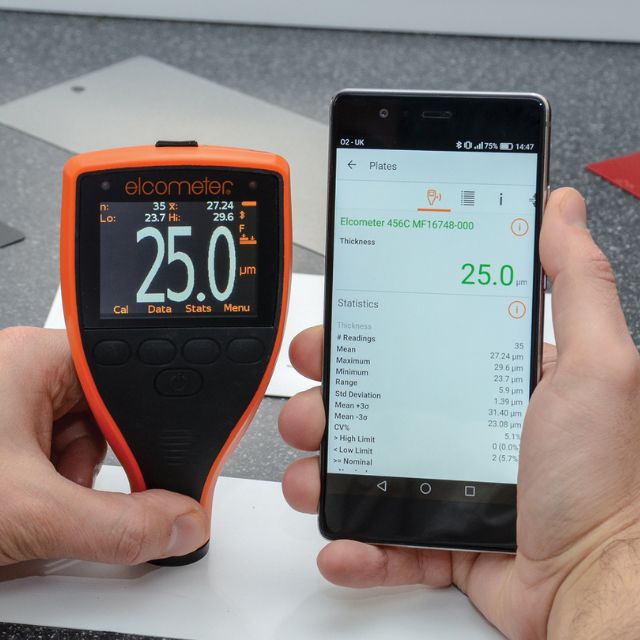

| Bluetooth®; to computer, Android™ & iOS3 devices | ⬛ | ⬛ | |
| On Screen Statistics | ⬛ | ⬛ | ⬛ |
| Nominal dry film thickness; NDFT | ⬛ | ⬛ | |
| IMO PSPC; %>NDFT, %>90 | ⬛ | ⬛ | |
| High & low limits; definable audible & visual alarms | ⬛ | ⬛ | |
| Number of readings above high limit; | ⬛ | ⬛ | |
| Number of readings below low limit; | ⬛ | ⬛ | |
| Live reading trend graph; in Batch Mode | ⬛ | ⬛ | |
| ElcoMaster® software & USB cable | ⬛ | ⬛ | |
| Replaceable screen protectors | ⬛ | ⬛ | |
| Protective case | ⬛ | ⬛ | ⬛ |
| Plastic transit case | ⬛ | ||
| Integral models; with automatic gauge switch on | ⬛ | ⬛ | ⬛ |
| Probe type; Ferrous (F), Non-Ferrous (N), Dual (FNF) | F, N, FNF | F, N, FNF | F, N, FNF |
| Measurement Range | 0-13mm (0-500mils) | 0-1500μm (0-60mils) | 0-1500μm (0-60mils) |
| Multiple calibration methods | ⬛ | ⬛ | ⬛ |
| Factory; resets to the factory calibration | ⬛ | ⬛ | ⬛ |
| 2-point; for smooth and rough surfaces | ⬛ | ⬛ | ⬛ |
| 1-point; zero calibration | ⬛ | ⬛ | ⬛ |
| Zero offset; for calibration according to ISO19840 | ⬛ | ⬛ | |
| Predefined calibration & measurement methods | ⬛ | ⬛ | |
| ISO, SSPC PA2, Swedish, Australian | ⬛ | ⬛ | |
| Automatic calibration; for rapid calibration | ⬛ | ⬛ | |
| Calibration memory type; gauge (g) or gauge & batch (gb) | g | gb | gb |
| Number of batches; with unique calibrations | 1 | 2,500 | |
| Calibration memories: 3 programmable memories | ⬛ | ||
| Measurement outside calibration warning | ⬛ | ||
| Calibration lock; with optional PIN Code Unlock | ⬛ | ⬛ | ⬛ |
| Delete last reading | ⬛ | ⬛ | ⬛ |
| Gauge memory; number of readings | Last 5 | 1,500 | 150,000 |
| Individual batch calibrations; sent to PC via ElcoMaster® software | ⬛ | ⬛ | |
| Limits; user definable audible & visual pass/fail warnings | ⬛ | ⬛ | |
| Gauge (g) or gauge & batch specific (gb) limits | g | gb | |
| Date & time stamp | ⬛ | ⬛ | |
| Review, clear & delete batches | ⬛ | ⬛ | |
| Batch types; normal, counted average, IMO PSPC | ⬛ | ⬛ | |
| Navsea Mode | ⬛ | ||
| Batch review graph | ⬛ | ||
| Copy batches and calibration settings | ⬛ | ||
| Alpha-numeric batch names; user definable on the gauge | ⬛ | ||
| Scan & Auto Repeat Modes; with Scan Probe connected | ⬛ | ||
| Fixed Batch Size Mode; with batch linking | ⬛ |
